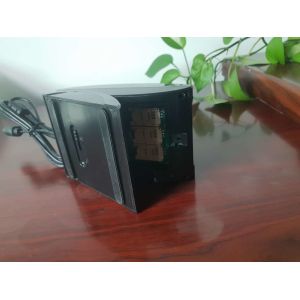

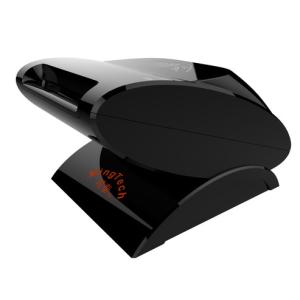

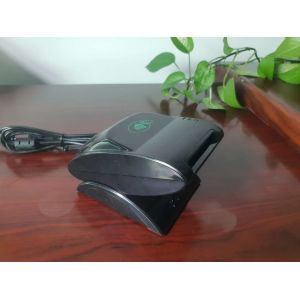

Desktop ergonomics design plug-in Card Reader
Features
Standard ISO 7816
Specifications
| Project | Parameters Of Specifications | |
| Dimension | ||
| Power Interface | ||
| Power Source | USB | |
| Supply Voltage | DC 5V±5% | |
| Supply Current | ≦300mA | |
| Cable Length | 1.8m,Fixed | |
| Communication Interface | ||
| Protocol | USB HID | |
| Speed | USB Full Speed(12Mbps) | |
| Contactless IC Card Interface | ||
| Standard | Standard ISO14443 Type A&B,S50/S70 | |
| Protocol | ISO14443 /1/2/3/4 T=CL,MIFARE | |
| Frequency | 13.56MHz±7kHz | |
| Speed | 106/212/424Kbps | |
| Operating Distance | 0~30mm | |
| Contact IC Card Interface | ||
| standard | Standard ISO7816 T=0/T=1 Smart Card； SLE4428/4442 Card； | |
| Speed | 9600~115200 bps | |
| Protection | short-circuit protection and overcurrent protection | |
| Endurance | Minimum 100.000 | |
| SAM | ||
| Number of Slots | 3 Standard SIM-Sized Card Slots | |
| standard | Standard ISO7816 protocol PSAM | |
| Others | ||
| LED | Three LED,Red color LED for power status,Green color LED for card status and operate status | |
| Buzzer | Monotone | |
| Device Vision | Support | |
| Device SN | Support | |
| Supporting System | Windows XP/7/8/10,Linux/Android | |
| Working Environment | ||
| Temperature | 0℃ ~ 50℃ | |
| Humidity | 10% ~ 90% | |
| Technical Support | ||
| Driver | Do not need to install the driver | |
| API | Windows 32&64bit SDK | |
| Technical Service | Supply SDK and Demo | |
|
Certifications
| Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS | |
Applications
